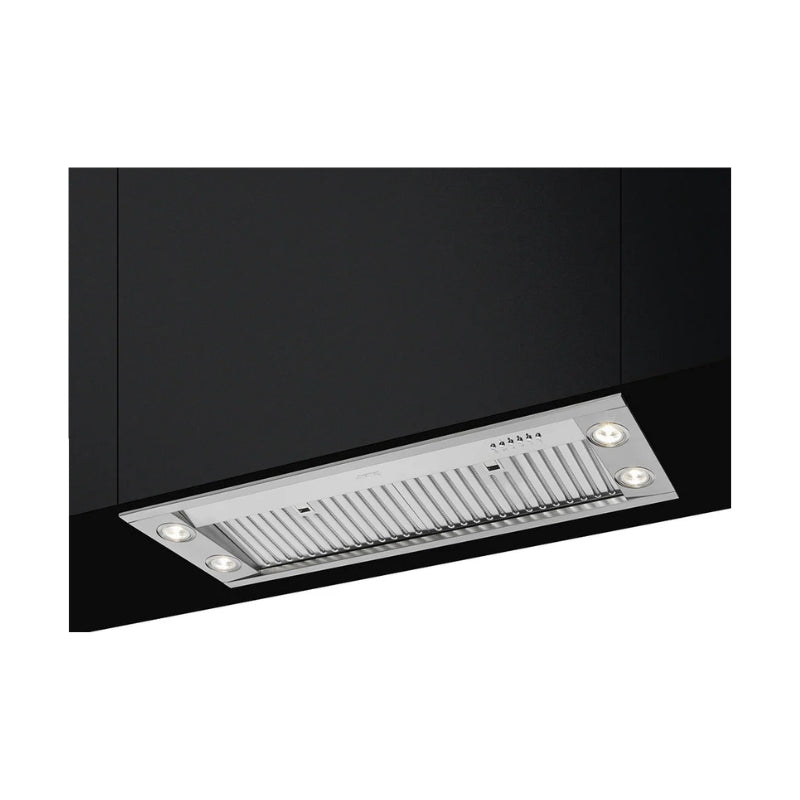

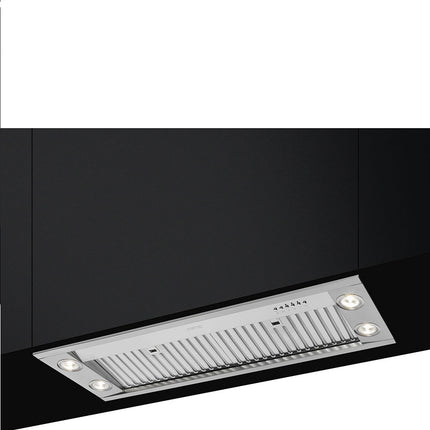

SMEG 90CM INTEGRATED EXTRACTOR STAINLESS STEEL - KDIAM90X
SMEG EXTRACTOR COOKER HOOD
HIGH PERFORMANCE 550W MOTOR
3 SPEED CONTROL
PLUS INTENSIVE SPEED TURBO OPTION
TYPE
Product family: Hood
Hood Type: Integrated hood
Hood width: 90 cm
Extraction: Extraction
Electronic control: Yes
EAN code: 8017709253851
AESTHETICS
Colour: Stainless steel
Finishing: Satin
Aesthetics: Universale
Design: Fully integrated
Material: Stainless steel
Type of steel: Brushed
PROGRAMS / FUNCTIONS
No. of speeds: 3
Intensive speed: Yes
Time-setting options: Automatic switch-off
CONTROLS
Control setting: Electronic buttons
Led color: White
TECHNICAL FEATURES
No. of lights: 4
Light type: LED
Light Power: 1 W
Light color temperature scale (°K): 3000 °K
Free outlet maximum capacity: 1400 m³/h
Motor power: 550 W
No. of filters: 2
Anti-grease filters: Buffle
Filter replacement indicator: Yes
Minimum distance from GAS hob: 650 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 750 mm
Non return valve: Yes
ELECTRICAL CONNECTION
Electrical connection rating: 555 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm
SPEED 1
Extraction rate IEC 61591: 552 m³/h
Noise level IEC 60704-2-13: 46 dB(A)
Power: 154 W
SPEED 2
Extraction rate IEC 61591: 950 m³/h
Noise level IEC 60704-2-13: 63 dB(A)
Power: 255 W
SPEED 3
Extraction rate IEC 61591: 1412 m³/h
Noise level IEC 60704-2-13: 71 dB(A)
Power: 334 W
INTENSIVE SPEED
Extraction rate (IEC 61591): 1555 m³/h
Noise level IEC 60704-2-13: 74 dB(A)
Power: 370 W
LOGISTIC INFORMATION
Dimensions of the product (mm): 315x900x295
Width: 900 mm
Depth (mm): 295 mm
Product Height (mm): 315 mm
Net weight (kg): 20.300 kg
