Description

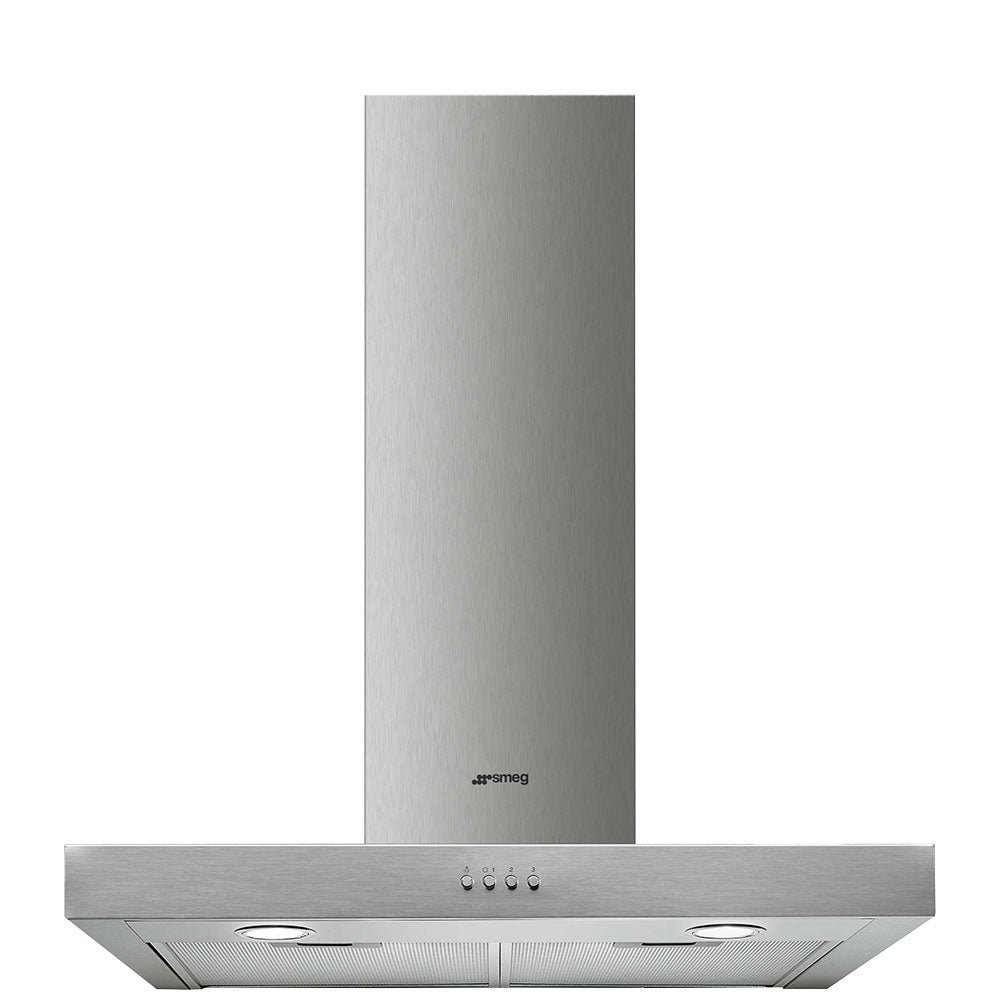

SMEG 60CM CHIMNEY T-SHAPED EXTRACTOR STAINLESS STEEL- KATE600CEX
SMEG EXTRACTOR - COOKER HOOD
3 SPEED CONTROL
PLUS INTENSIVE SPEED TURBO OPTION
Description
TYPE
Product family: Hood
Hood Type: Decorative wall hood
Hood width: 60 cm
Extraction: Extraction
EAN code: 8017709255053
AESTHETICS
Colour: Stainless steel
Finishing: Satin
Aesthetics: Universale
Design: T flat
Material: Stainless steel
Type of steel: Brushed
PROGRAMS / FUNCTIONS
No. of speeds: 3
CONTROLS
Control setting: Buttons
TECHNICAL FEATURES
No. of lights: 2
Light type: LED
Light Power: 2,5 W
Light color temperature scale (°K): 3500 °K
Free outlet maximum capacity: 612 m³/h
Motor power: 175 W
No. of filters: 2
Anti-grease filters: Aluminium
Charcoal filters included: Yes
Minimum distance from GAS hob: 650 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 500 mm
Non return valve: Yes
PERFORMANCE / ENERGY LABEL
Energy efficicency class ( EEC): C
Fluid Dynamic Efficiency class (FDEC): C
Grease Filtering Efficiency Class (GFEC): C
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 77 kWh/a
Fluid Dynamic Efficiency (FDE): 20.2
Lighting Efficiency (LE): 76.1 lux/W
Grease Filtering Efficiency (GFE): 76 %
Air flow at minumum speed (Qmin): 240 m³/h
Air flow at maximum speed (Qmax): 581 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 47 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 68 dB(A)
Time increase factor (F): 1.3
Measured air flow rate at best efficiency point (Qbep): 336 m³/h
Measured air pressure at best efficiency point (Pbep): 334 Pa
Measured electric power input at best efficiency point (Wbep): 155 W
Nominal Power consumption of the light system (WL): 5 W
Average illumination of the light on the cooking surface (Emiddle): 381 lux
Sound power level at highest setting (Lwa): 68 dB(A)
ELECTRICAL CONNECTION
Electrical connection rating: 180 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm
SPEED 1
Extraction rate IEC 61591: 241 m³/h
Noise level IEC 60704-2-13: 46 dB(A)
Power: 110 W
SPEED 2
Extraction rate IEC 61591: 370 m³/h
Noise level IEC 60704-2-13: 56 dB(A)
Power: 137 W
SPEED 3
Extraction rate IEC 61591: 590 m³/h
Noise level IEC 60704-2-13: 65 dB(A)
Power: 194 W
LOGISTIC INFORMATION

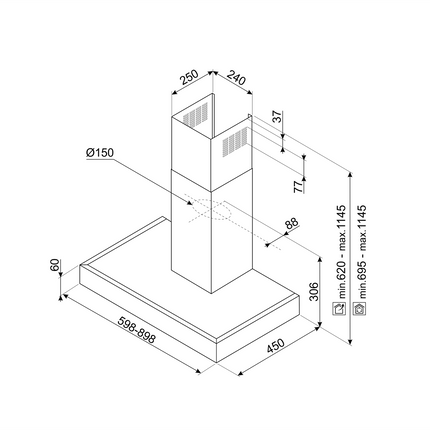

Dimensions of the product (mm): 540x598x450
Width: 598 mm
Depth (mm): 450 mm
Product Height (mm): 540 mm
Net weight (kg): 11.400 kg
