Description

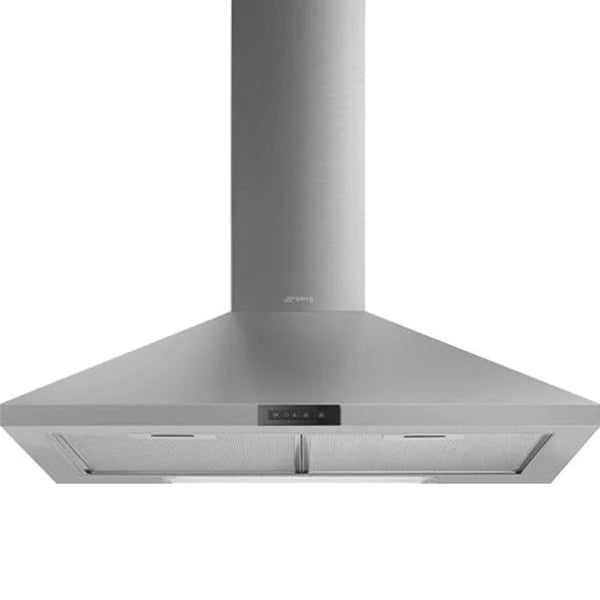

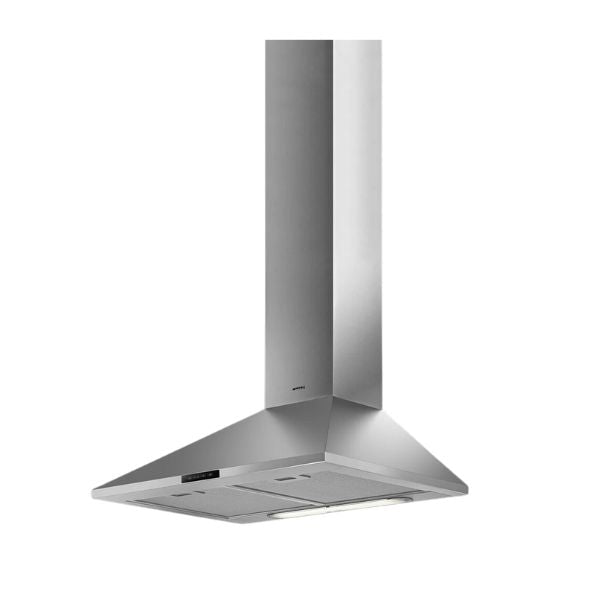

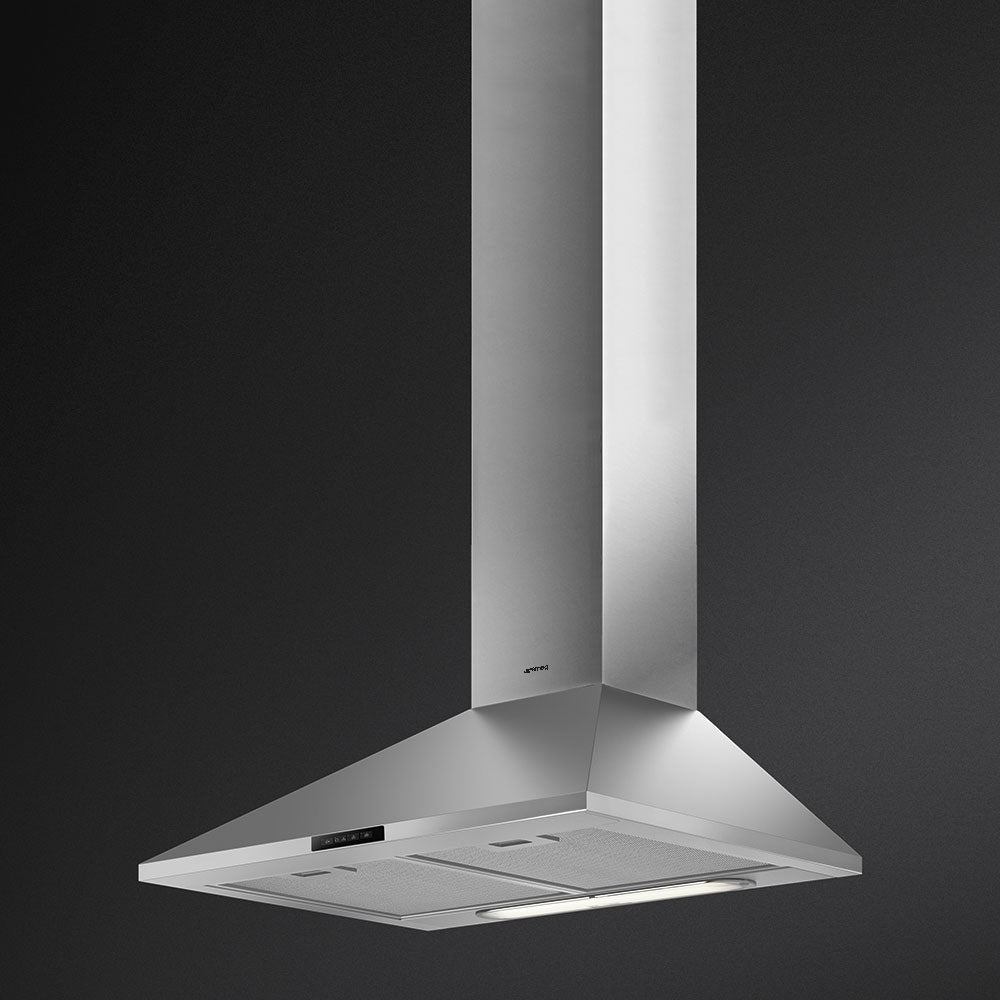

SMEG 60CM CHIMNEY EXTRACTOR STAINLESS STEEL - KDE600EX
SMEG COOKER HOOD EXTRACTOR
3 SPEED CONTROL
2 LED LIGHTS
TYPE
Product family: Hood
Hood Type: Decorative wall hood
Hood width: 60 cm
Extraction: Extraction
EAN code: 8017709235154
AESTHETICS
Colour: Stainless steel
Finishing: Satin
Aesthetics: Universale
Design: Chimney
Components finishing: Stainless steel
Material: Stainless steel
Type of steel: Brushed
PROGRAMS / FUNCTIONS
No. of speeds: 3
CONTROLS
Control setting: Buttons
TECHNICAL FEATURES
No. of lights: 2
Light type: LED
Light Power: 3 W
Light color temperature scale (°K): 2700 °K
Free outlet maximum capacity: 588 m³/h
Motor power: 180 W
No. of filters: 2
Anti-grease filters: Aluminium
Minimum distance from GAS hob: 700 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 500 mm
Non return valve: Yes
Wall Mountable
PERFORMANCE / ENERGY LABEL
Energy efficicency class ( EEC): D
Fluid Dynamic Efficiency class (FDEC): E
Grease Filtering Efficiency Class (GFEC): C
Lighting Efficiency Class (LEC): C
Annual Efficiency Consumption (AEChood): 103 kWh/a
Fluid Dynamic Efficiency (FDE): 12.6
Lighting Efficiency (LE): 16.1 lux/W
Grease Filtering Efficiency (GFE): 76 %
Air flow at minumum speed (Qmin): 208 m³/h
Air flow at maximum speed (Qmax): 559 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 44 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
Time increase factor (F): 1.5
Measured air flow rate at best efficiency point (Qbep): 320 m³/h
Measured air pressure at best efficiency point (Pbep): 255 Pa
Measured electric power input at best efficiency point (Wbep): 180 W
Nominal Power consumption of the light system (WL): 6 W
Average illumination of the light on the cooking surface (Emiddle): 97 lux
Sound power level at highest setting (Lwa): 67 dB(A)
ELECTRICAL CONNECTION
Electrical connection rating: 186 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm
SPEED 1
Extraction rate IEC 61591: 202 m³/h
Noise level IEC 60704-2-13: 42 dB(A)
Power: 99 W
SPEED 2
Extraction rate IEC 61591: 307 m³/h
Noise level IEC 60704-2-13: 52 dB(A)
Power: 126 W
SPEED 3
Extraction rate IEC 61591: 553 m³/h
Noise level IEC 60704-2-13: 65 dB(A)
Power: 201 W
LOGISTIC INFORMATION

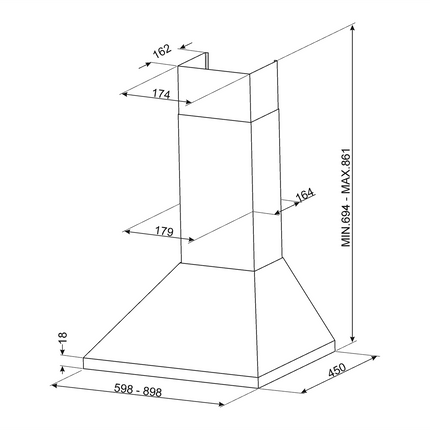

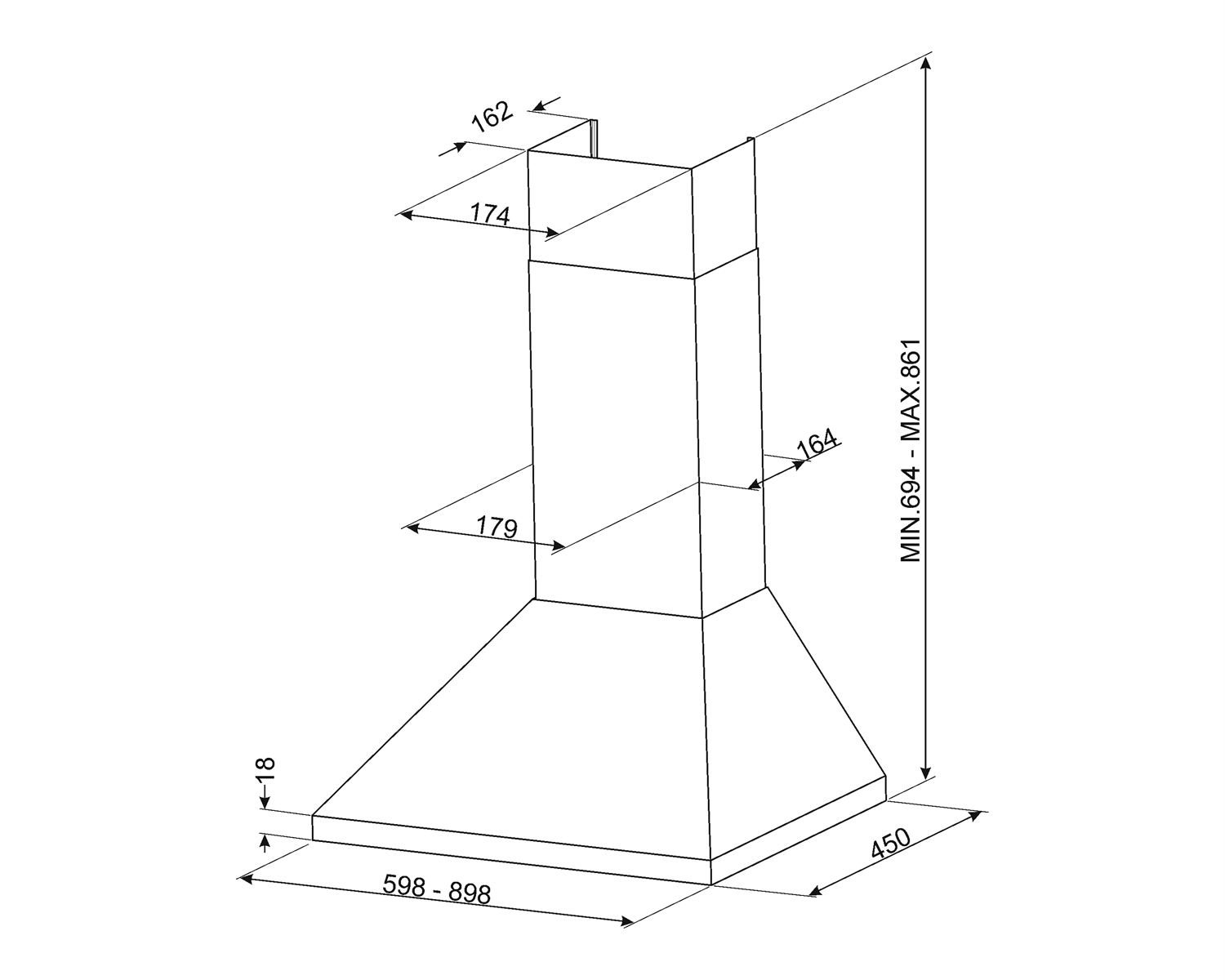

Dimensions of the product (mm): 529x598x450
Width: 598 mm
Depth (mm): 450 mm
Product Height (mm): 529 mm
Net weight (kg): 6.700 kg
