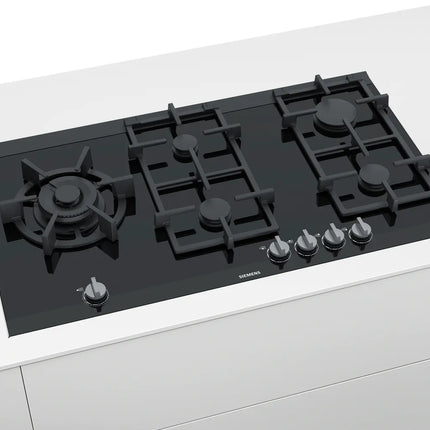

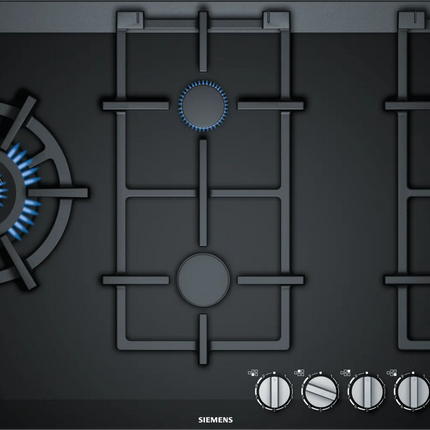

SIEMENS 90CM GAS ON BLACK GLASS HOB IQ700 - ER9A6SB70Z
SIEMENS 90CM GAS ON BLACK GLASS HOB IQ700 - ER9A6SB70Z
Description
The gas hob with stepFlame Technology for precise flame control in nine steps.
stepFlame Technology – Precise flame control with nine different settings.
Dishwasher-proof pan supports – Cut the time you spend cleaning the hob.
High-quality materials and workmanship – continuous cast-iron pan supports.

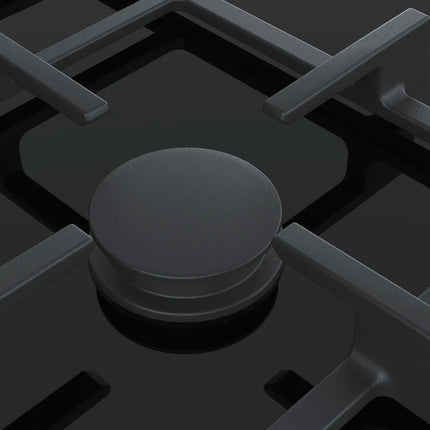

Design burner – extremely flat in comparision to standard burner.
The extremely convenient sword knob makes it easy to recognize the power level selected.
· Design
· ceramic glass surface, black

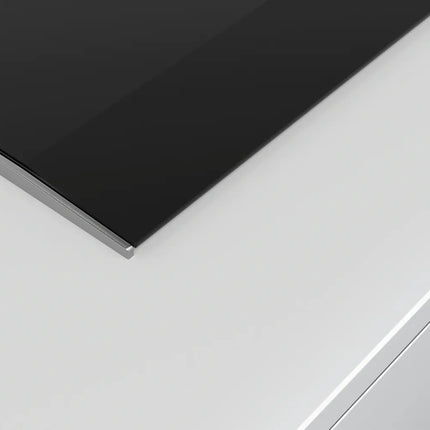

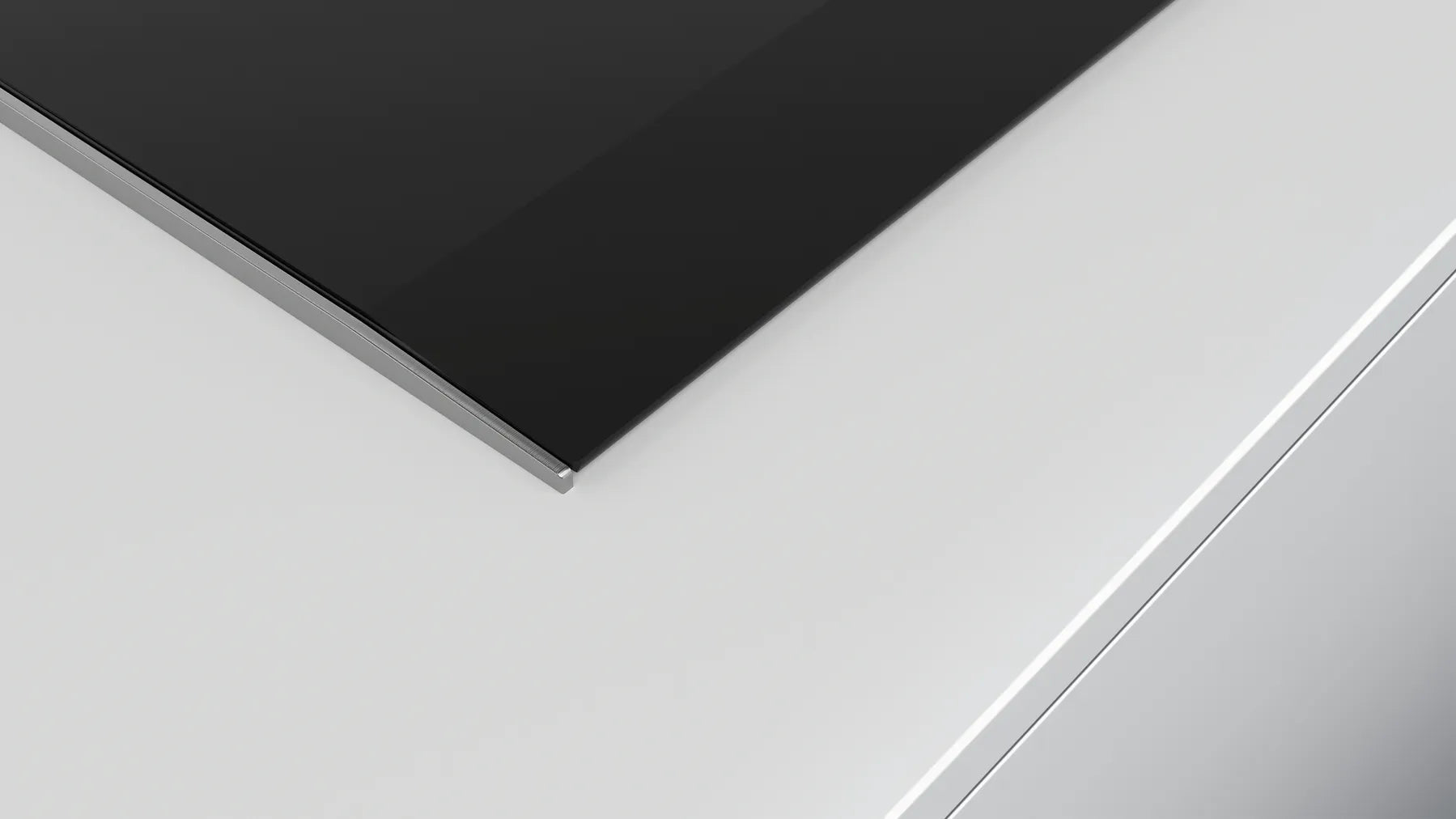

· Facette front, rear and side profiles, aluminum
· Cast iron continuous pan supports

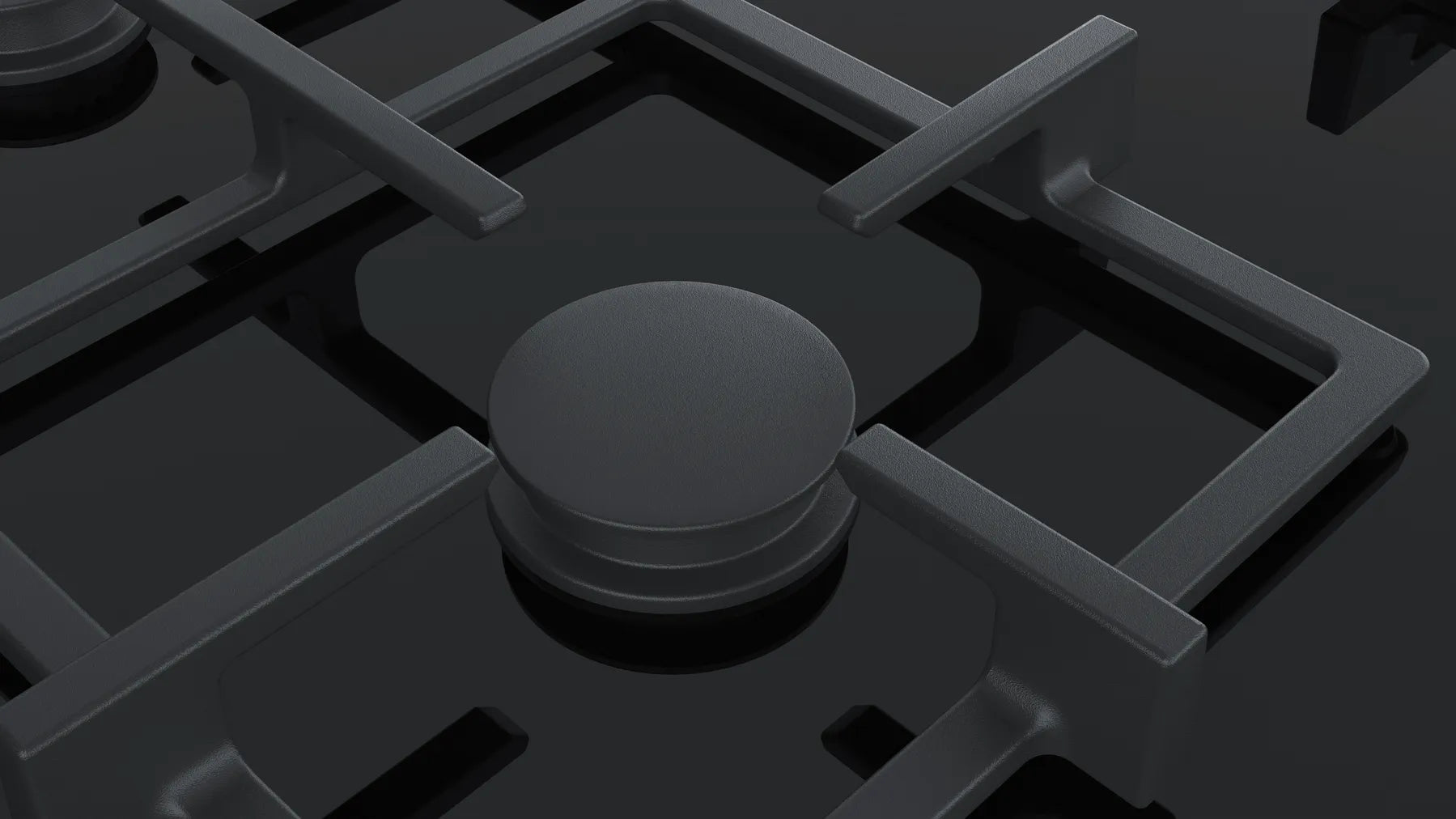

· Flat burner design: elegant burner design with less pieces
· Usage convenience
· stepFlame Technology: precisely adjust the flame in nine defined and repeatable levels.
· (?): see the selected power level and the residual heat.
· Pan supports dishwasher proof: clean without effort in the dishwasher.

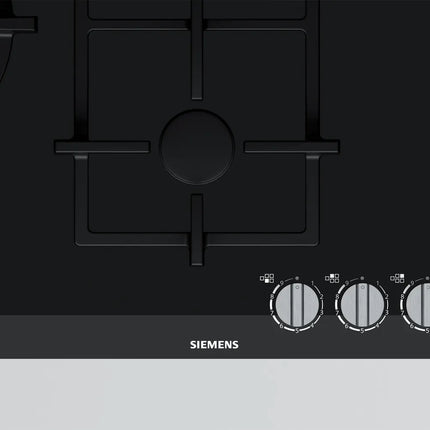

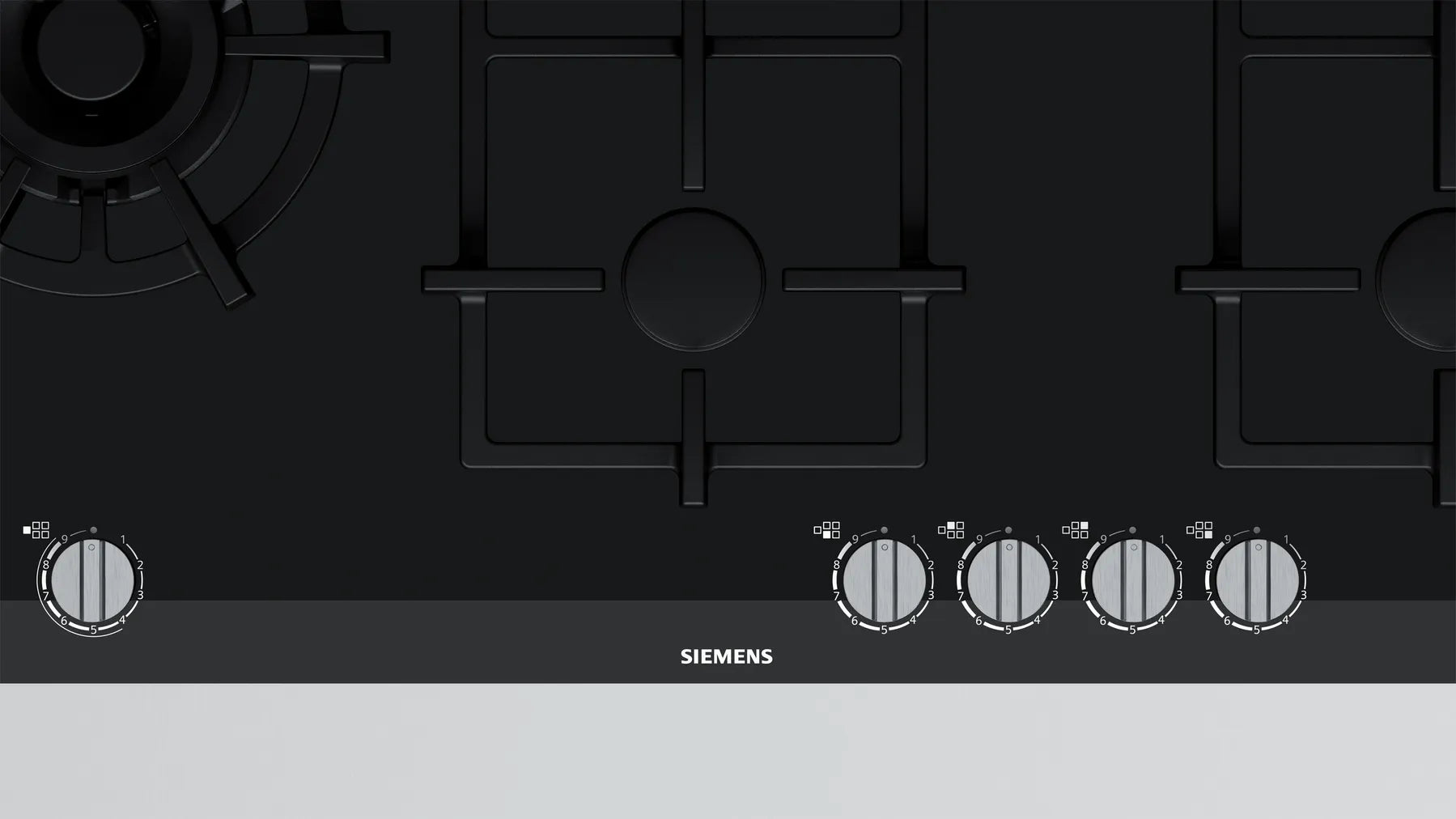

· Sword control knobs: easily access knobs in front with strong grip for effortless turning.
· 1-handed ignition via control knobs: just push and turn the knob to ignite the flame.
· Burners and power

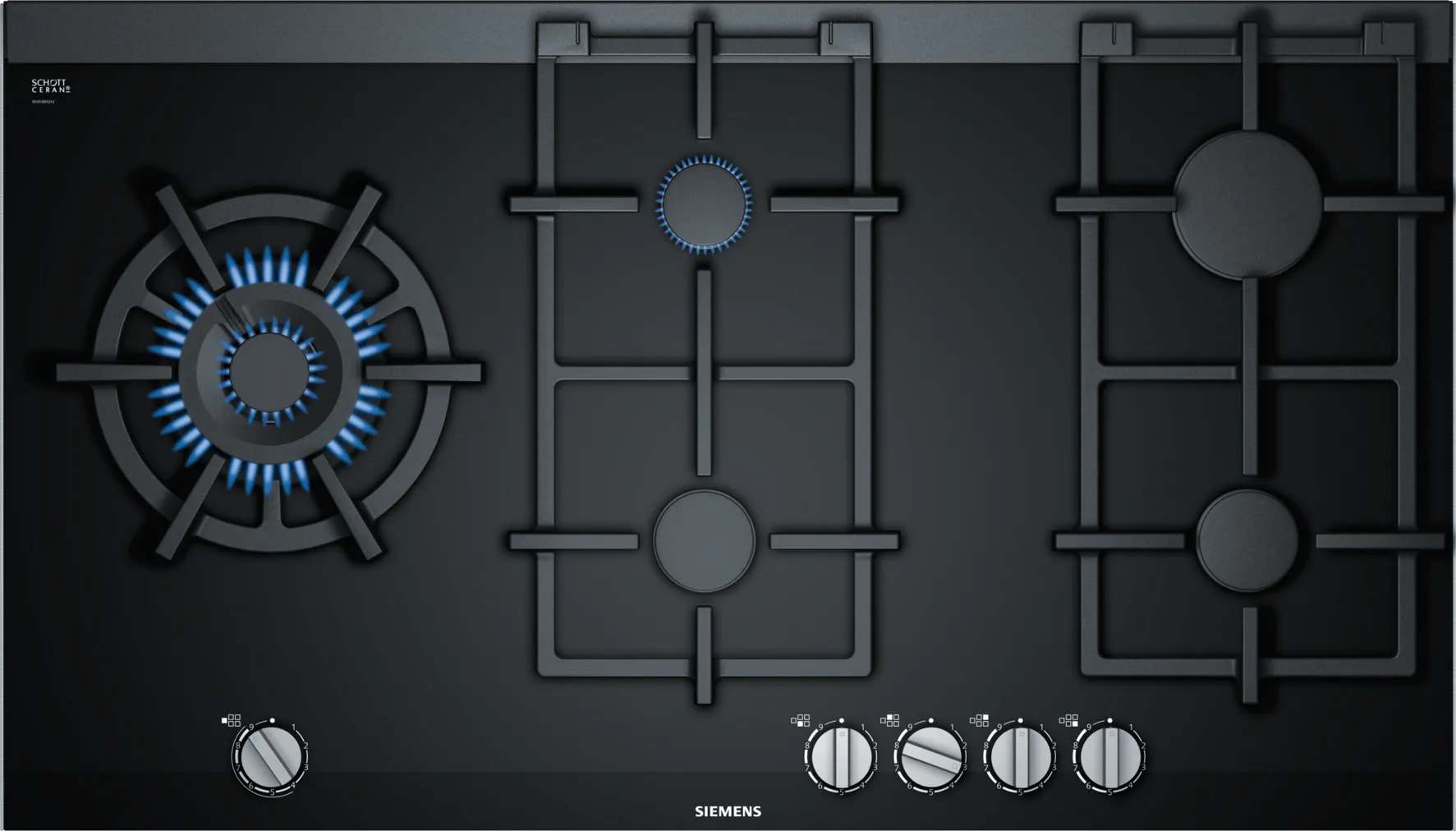

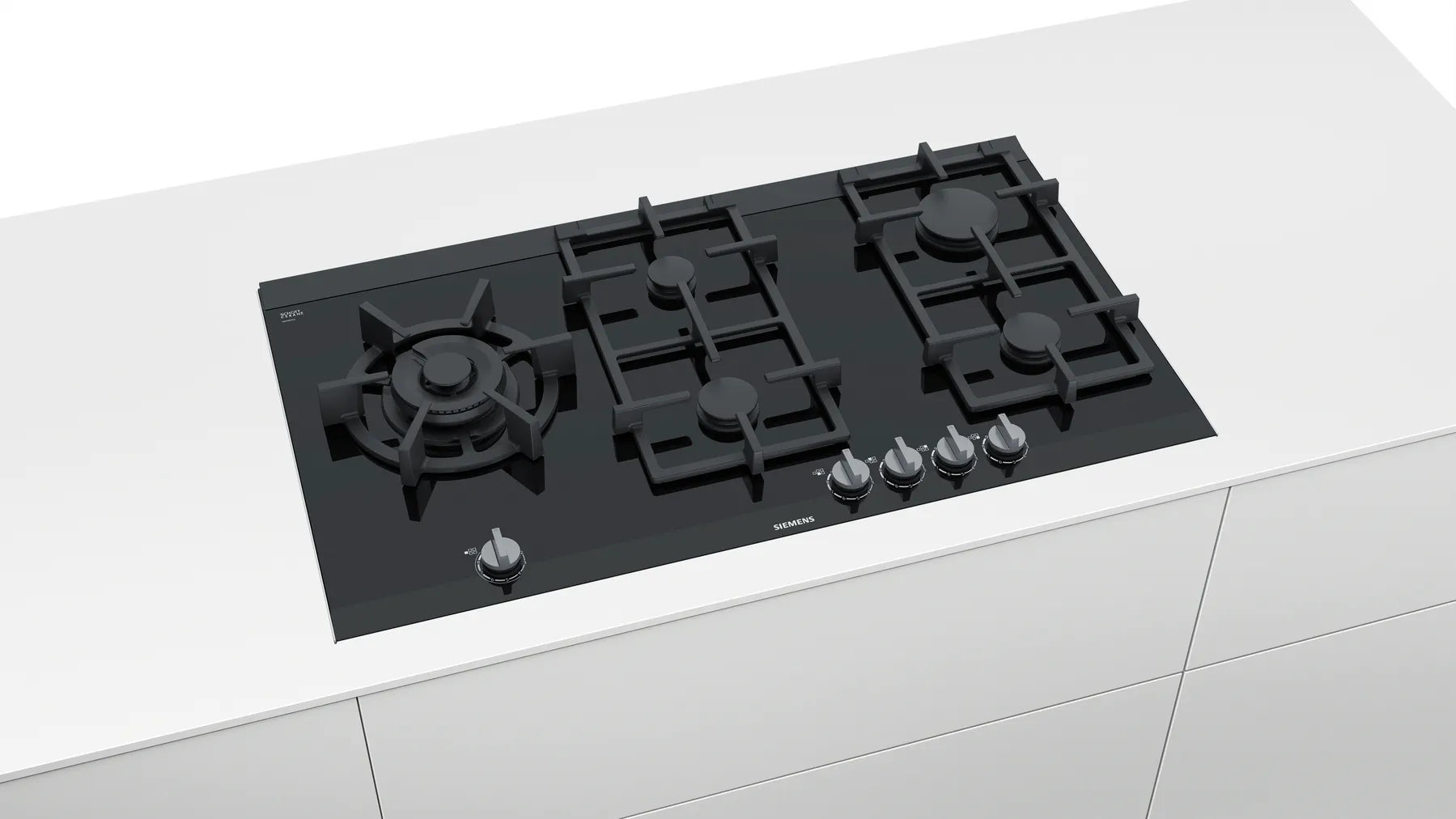

· 5 Gas burners
· Left front: (?) up to (?) (depending on gas type)
· Left rear: (?) up to (?) (depending on gas type)
· Right rear: Rapid burner up to 2.8 KW (depending on gas type)
· Right front: Standard burner up to 1.9 KW (depending on gas type)
· Safety
· Flame failure safety device: prevents unwanted gas flow when flame goes out.
· (?): indicates which burner parts and pan supports are still hot.
· Installation (gas types & measurements)
· Usable for: NG H/E 20mbar, E+ 20/25mbar
Liquid gas G30,31 28-30/37mbar
· Preset nozzle: Liquid gas (28-30/37mbar)
· Nozzle set for Natural gas nozzles (20 mbar) included. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.

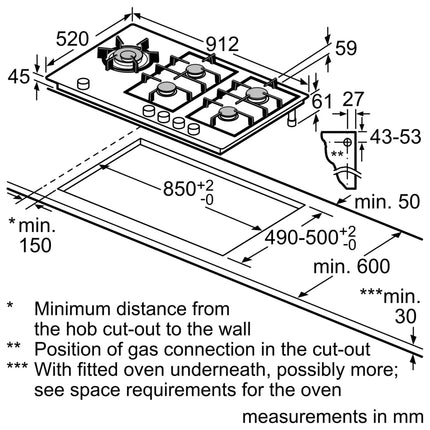

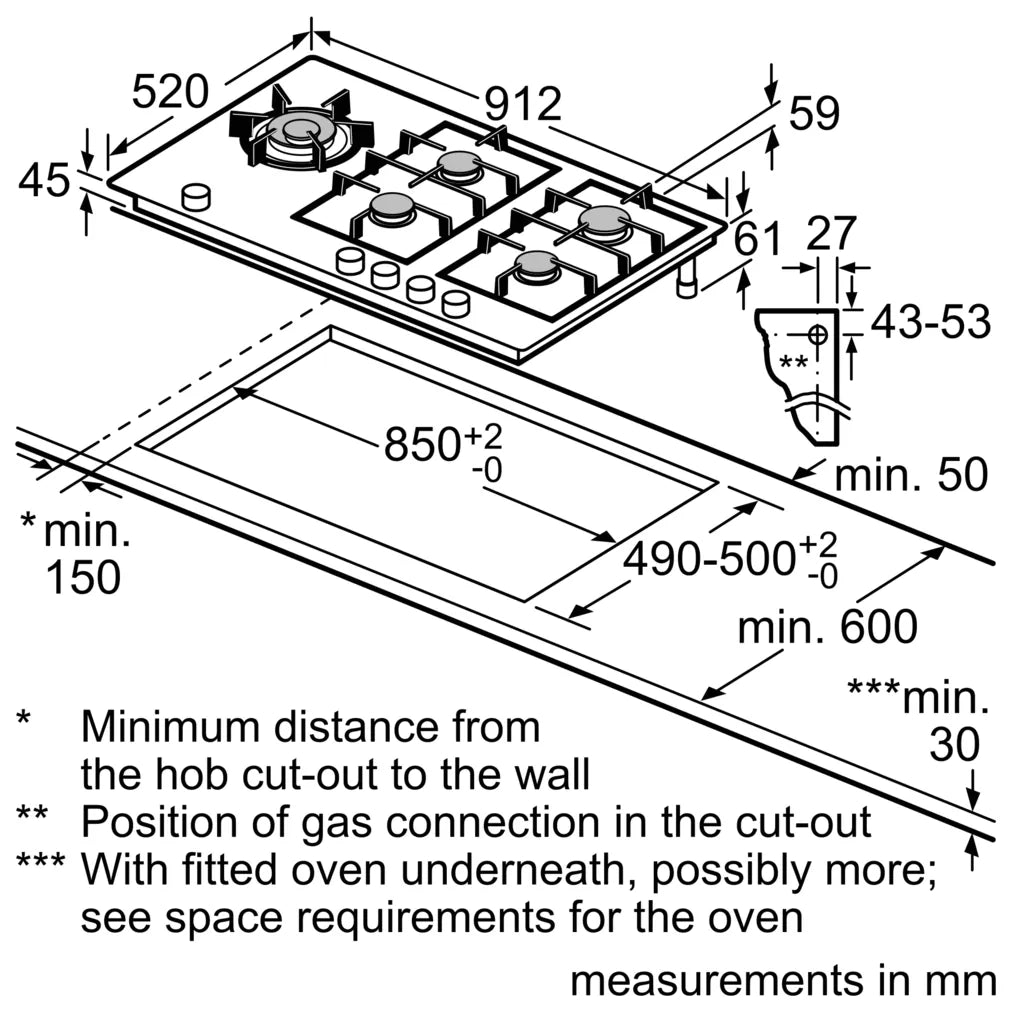

· Required niche size for installation (HxWxD mm) : 45 x 850 x (490 - 502)
· Min. worktop thickness: 30 mm
· Dimensions of the product (HxWxD mm): 59 x 912 x 520
· ER9A6SB70Z
· Gas hob, autarkic, 90 cm
· Connected load: 13.8 KW
· Power cord: 1 m
