Description

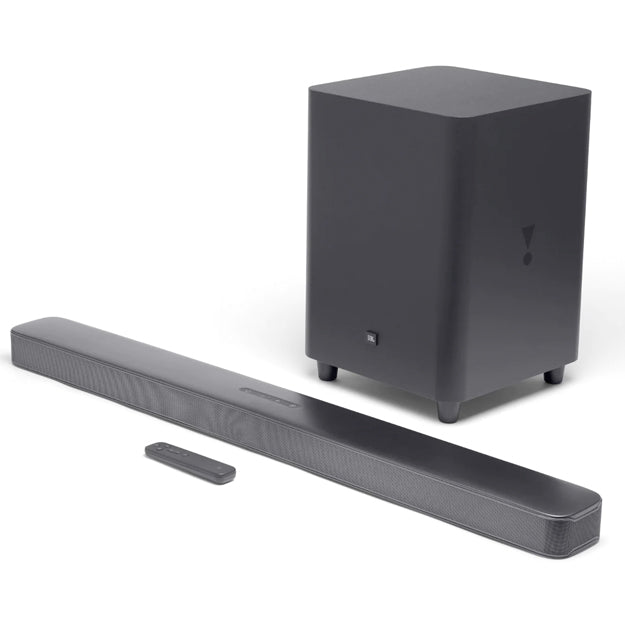

JBL BAR 5.1 SURROUND SOUNDBAR WITH MULTIBEAM SOUND TECH - OH4181
The impressive JBL Bar 5.1 Surround delivers the ultimate home cinematic experience. Bring everything you watch to life with 550 Watts of power and a 10’’ subwoofer: the driving bass of an action movie, the tension of a thriller or the beauty of a nature documentary. Built-in Chromecast and Airplay 2 lets you stream and manage online content, and Bluetooth means your streamed music sounds great, too. Amazing surround sound comes from JBL MultiBeam™ technology. JBL has powered the world’s movie theatres for more than 75 years. Now you can bring that power home.
Powerful sound
JBL MultiBeam™ technology brings the ultimate cinematic experience to your home. No extra speakers or wires are needed.
You got the power
With 550 Watts of system output power, experience your movies and music like never before. Immersive, powerful sound to match your viewing pleasure.
Feel the bass
Punchy, precise bass from a mighty 10’’ wireless subwoofer brings the action to action movies, and ensures any soundtrack sounds epic.
Audio Specifications
Total speaker power output (Max. @THD 1%) 550W
Max SPL 103dB
Frequency response 40Hz - 20KHz
Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
MP3 Codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate 16KHz - 48 KHz
MP3 bitrate 80kbps - 320kbps
WAV sample rate 16KHz - 48 KHz
WAV bitrate Up to 3000kbps
Dimensions
Soundbar transducer 5 x 4690” racetrack drivers +2 x 1.25” side-firing tweeters
Subwoofer transducer 10”
Dimensions (W x H x D) 1018 x 58 x 100mm / 40” x 2.28” x 3.94” (Soundbar); 305 x 440 x 305mm / 12” x 17.3” x 12” (Subwoofer)
Weight 2.85KG (Soundbar); 10.62Kg (Subwoofer)
Control and Connection Specifications
USB port Type A
USB rating 5V DC, 0.5A
Supporting file format mp3, wav
Bluetooth version 5
Bluetooth profile A2DP V1.3, AVRCP V1.5
Bluetooth frequency range 2402MHz - 2480MHz
Bluetooth Max. transmitting power Modulation Type GFSK, π/4 DQPSK, 8DPSK
Wi-Fi network IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi frequency range 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi Max. transmitting power <20dBm
Modulation Type DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi frequency range 5.15 - 5.35GHz, 5.725 - 5.825GHz
5G Wi-Fi Max. transmitting power <22dBm
Modulation Type QPSK, BPSK, 16QAM, 64QAM, 256QAM
5G Wireless frequency range 5161.35 - 5245.35MHz, 5736.35 - 5820.35MHz
5G Max. transmitting power Modulation Type π/4 DQPSK
Video Specifications
HDMI Video input 1
HDMI Video output (With Audio return channel) 1
HDMI HDCP version 2.2
