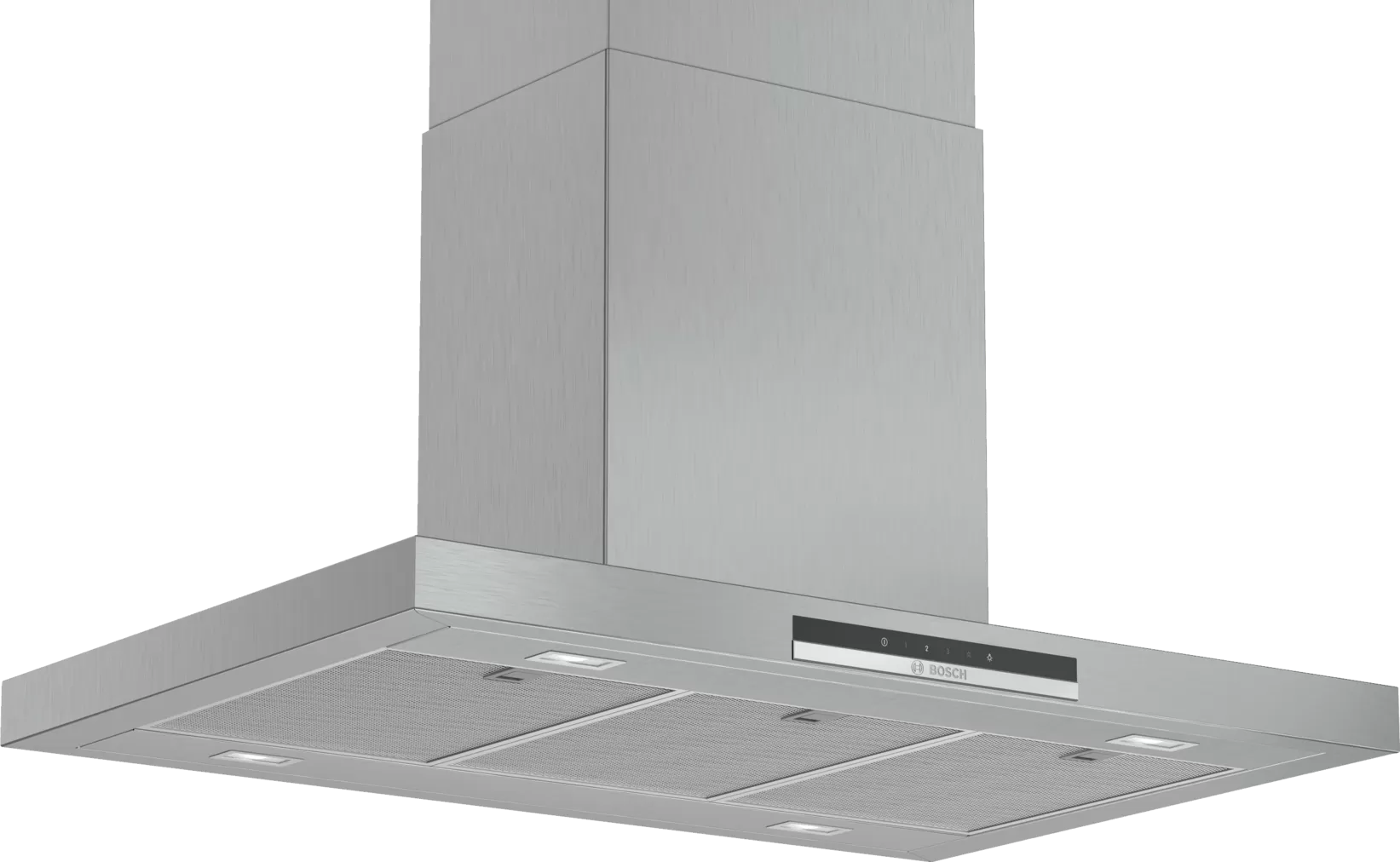

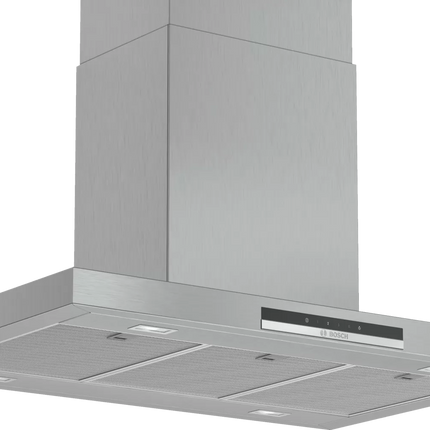

BOSCH 90CM ISLAND EXTRACTOR HOOD SERIES 4 - DIB97IM50
BOSCH 90CM ISLAND EXTRACTOR HOOD SERIES 4 - DIB97IM50

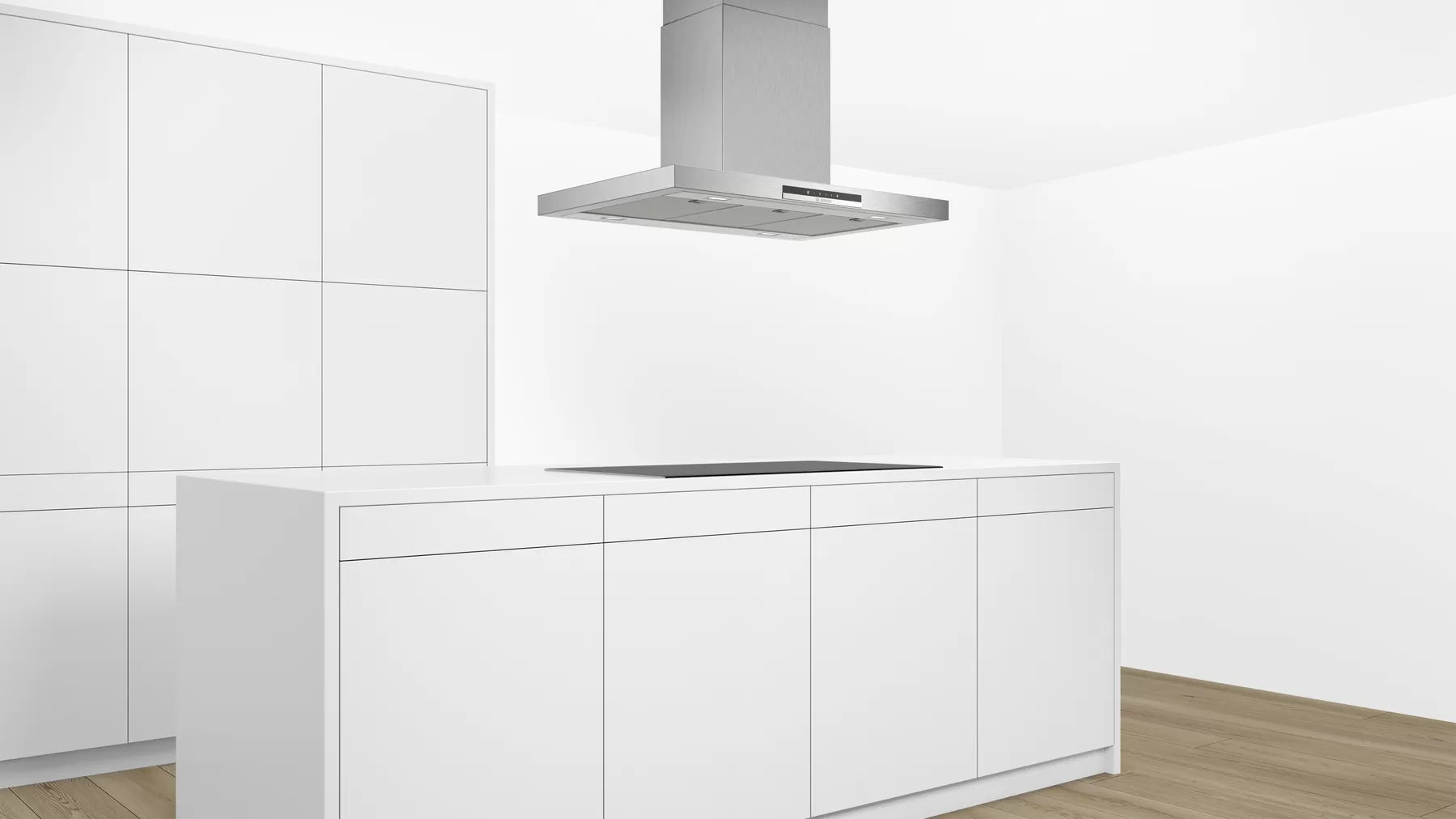

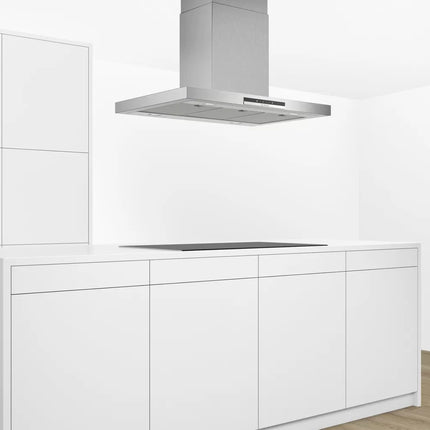

– The island chimney hood: the perfect solution for your cooking island thanks to flexible ceiling mounting.
– Especially silent: maximal extractor performance with minimal noise
– Easy-to-clean interior: hidden screws and cables along with rounded edges make cleaning easy.

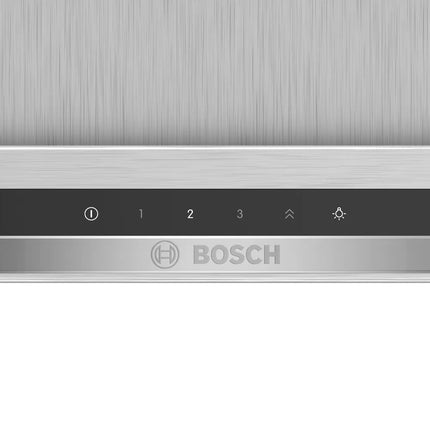

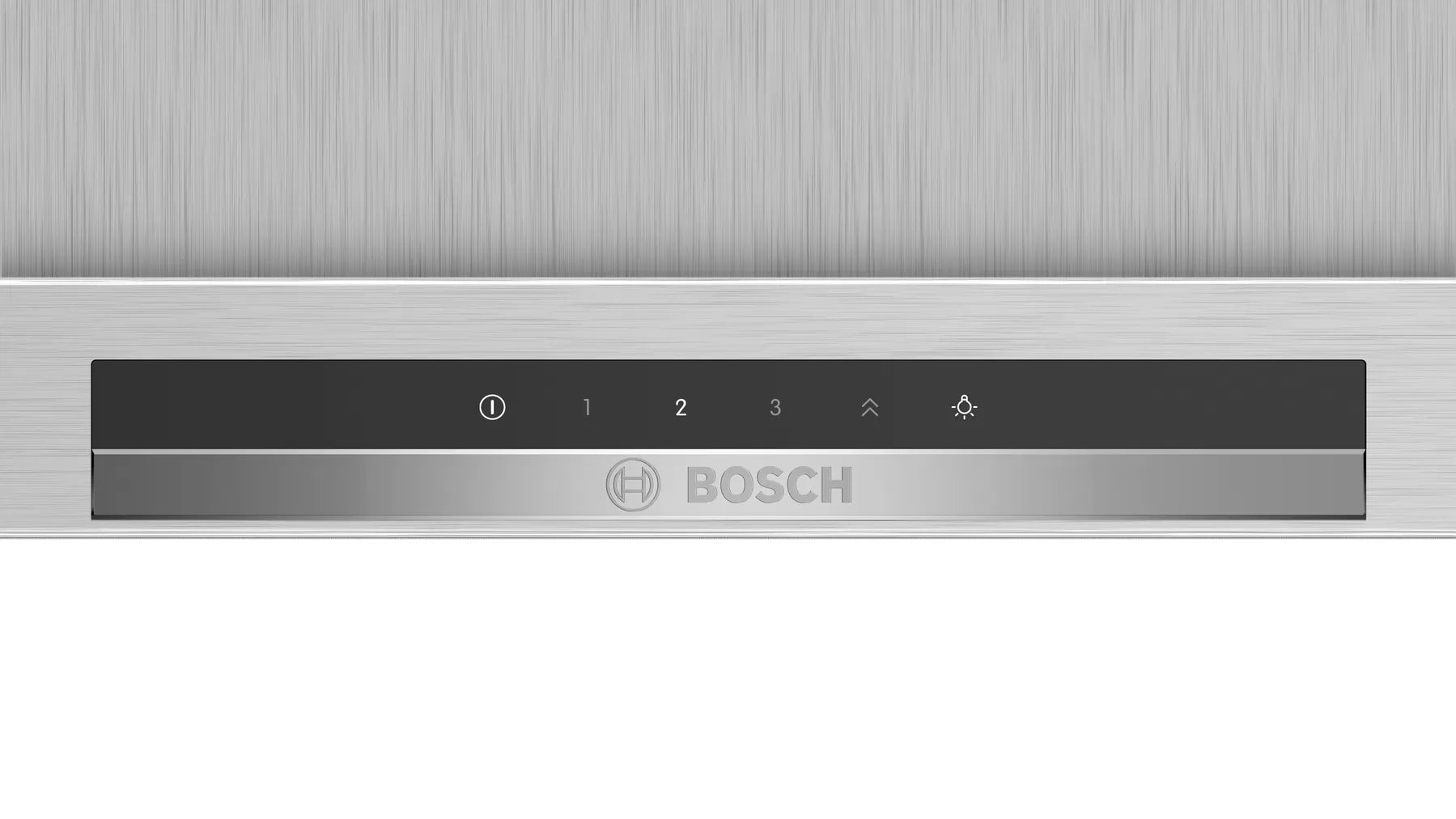

– TouchSelect control: quick touch-control selection of desired settings and light. TouchSelect control: quick touch-control selection of desired settings and light.
– Intensive speed setting: removes strong kitchen odours especially quickly and effectively.
– Extraction rate: at MAX_FOERDERLEISTUNG m3/h, it quickly ensures optimal kitchen air quality.
Island extractor
90 cm wide
Brushed steel
Suitable for ducted or recirculating operation
Recirc. kit or clean air kit
Designed for ceiling mounted installation
touch control for extractor speeds and light
Electronic controls
touch control with Electronic display
3 speed + intensive operation via touch control
Electronic controls via touch control with Electronic display
touch control (3 speed + intensive operation) with Electronic display
3 speed + intensive operation
Intensive op. revert dur.: 6 min.
Easy to clean
4 x 1,5W LED
Light Intensity: 409 lux
Colour Temperature: 3500 K

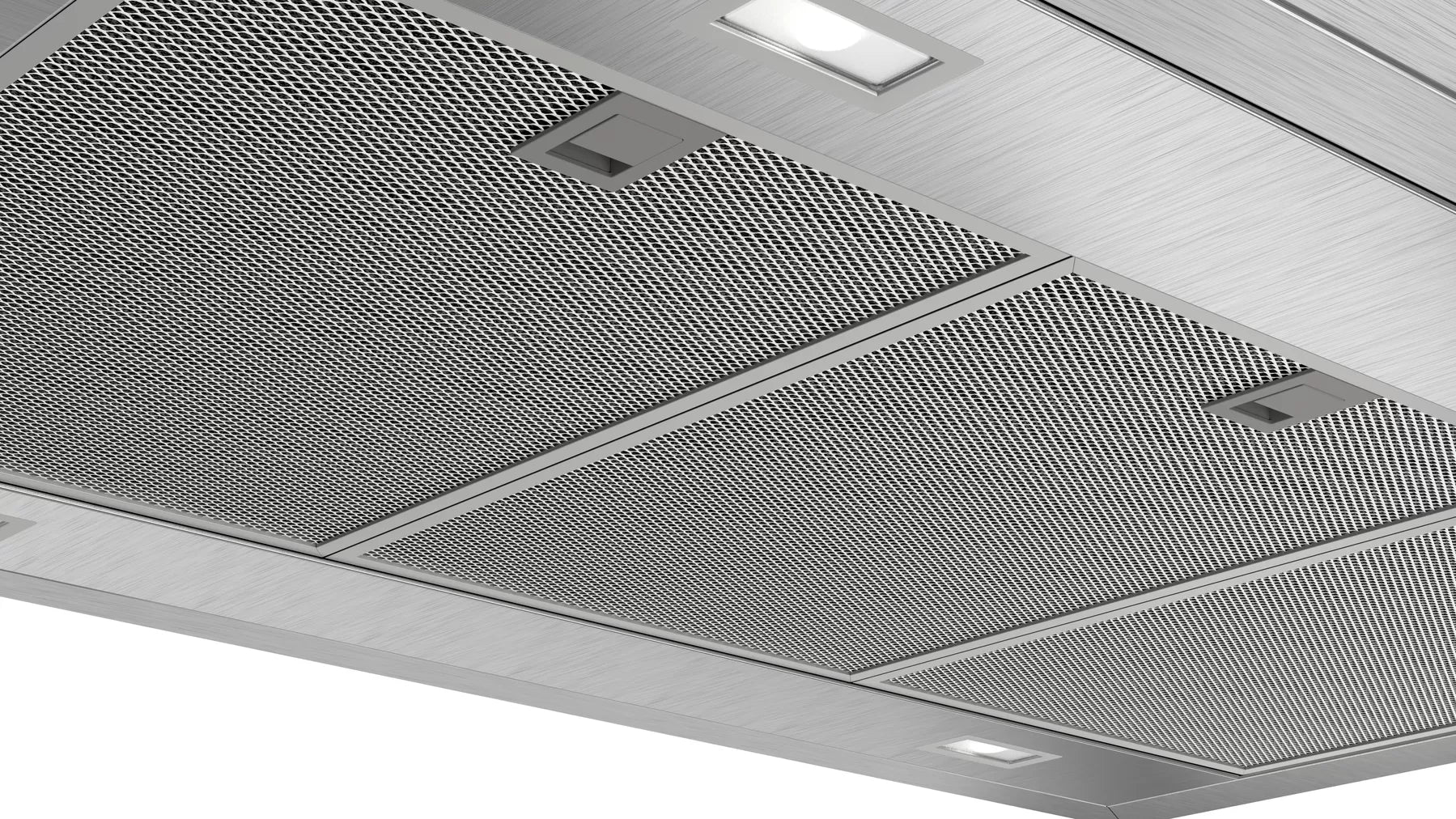

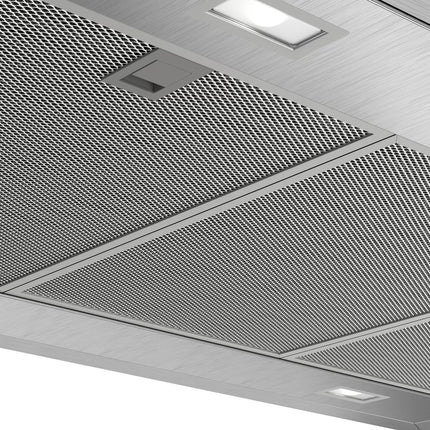

Removable metal grease filters, dishwasher safe
Extraction rate according to DIN/EN 61591 ø 15 cm: max. Normal 438 m³/h Intensive 754 m³/h
Ducted extraction rate according to DIN/EN 61591max. 438 m³/h
Maximum extraction 438 m3/h
Extraction rate exhaust air according to EN 61591: max. normal use 438 m³/h, intensive 754 m³/h
Dimensions recirculating with CleanAir module (HxWxD): 812-1044 x 898 x 600 mm
Additional noise insulation
Noise level according to EN 60704-3 und EN 60704-2-13 at max. normal use exhaust air: 57 dB(A) re 1 pW (44 dB(A) re 20 µPa sound pressure)
Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air: Max. normal use: 57 dB(A) re 1 pW (44 dB(A) re 20 µPa sound pressure) Intensive: 68 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Yes
Max. extraction rate: 754 m3/h
Extraction rate in recirculation mode: Max. normal use: 339 m³/h Intensive: 423 m³/h
Noise levels in recirculation mode: Max. normal use: 72 dB(A) re 1 pW (59 dB(A) re 20 µPa sound pressure) Intensive: 76 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure)
Dimensions exhaust air (HxWxD): 744-924 x 898 x 600 mm
Dimensions recirculating (HxWxD): 744-1044 x 898 x 600 mm
Power rating: 256 W
Electrical cable lenght 1.3 m
Voltage: 220 – 240 V
